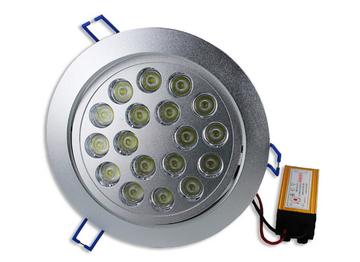

7" Recessed 24-watt EconoLuxe™ Spot Light Series
Select LED colorQty
10,000K-Blue Sky$.00
6,500K-Bright White$.00
5,000K-Pure White$.00
3,000K-Warm White$.00
Select Beam angle
25 degree-Narrow Spot
45 degree-Medium Spot
60 degree-Wide Spot
Dimmable Option
Trim Color
add to cart buy now add to wishlist
  • Equivalent to: 200W Incandescent, Halogen or CFL Light Bulb
  • Wattage: 24 Watts
  • Input Voltage: AC85~265V (50~60Hz)
  • LED Qty: 24 High power
  • LED Chip Brand: BridgeLux
  • Available LED Color:  3000K / 4800K / 6500K / 10000K (selectable option)
  • Lumens (Light output): 2,800
  • Life Span: 50,000 Hours
  • Trim Diameter: 7.0" (180mm)
  • Cut Hole Diameter: 6.30" (160mm)
  • Height: 4.0" (100mm)
  • Trim Color: Brushed aluminum / White / Gold (selectable option)
  • Beam Angle: 25° / 40° / 60° (selectable option)
  • Power Factor: >0.90
  • Color Rendering Index: >85
  • Working temp: -20°C~+50°C
  • Housing Material: Aluminum alloy
  • Dimmable: Yes (selectable Option)
  • Product Weight: 2.25 lbs (1,020 grams)
  • Certificates: CE, RoHS, FCC
  • Warranty: 2 Years
  • LED Driver included: Yes
  • Model Number: RELX-24W

This Recessed 24-watt Econoluxe™ LED spot light kit encompasses a 2,800 lumens while using only 24 watts of energy consumption. Integrated with the most highly advanced LED light source, with it's sophisticated aluminum housing and reliable external LED driver, makes this an elite choice for it's unique design for a wide range of recessed Ceiling Lighting applications over any traditional incandescent, HID and halogen light source.

Its sophisticated Unique Design features include, tilt-able up-to 60 degrees with its simple installation features makes this an ideal choice for a wide range of applications including; Jewelry stores, Retail, art galleries, boutiques, clothing stores, Optical stores, Furniture showrooms, Hotels, offices, Car Dealerships, residential, Hospitality casino & Gaming industry, and much more.

**Volume discounts and distributor pricing available. Please contact us at: 1800-533-4898 for more details.
