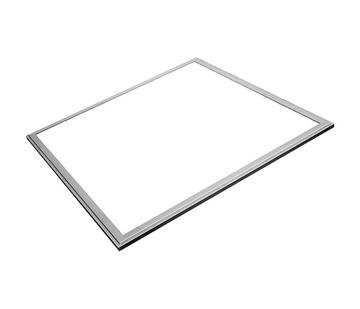

1x1 Mini PaneLite™ LED Light Series
Select LED colorQty
6,500K-Bright White$.00
5,000K-Pure white$.00
4,000K-Soft white$.00
3,000K-Warm white$.00
Mounting Options
add to cart buy now add to wishlist
  • Equivalent To: 50W Fluorescent Light source
  • Wattage: 24 Watts
  • Lumens: 2,760 Lumens
  • Lumens per Watt (Efficacy): 115lm / Watt
  • Input Voltage: 100~277VAC 50/60Hz
  • LED Chip Brand: BridgeLux
  • Available LED Color:  3000K / 4000K / 5000K / 6500K (Selectable)
  • Trim Color: Silver
  • Beam spread: 120°
  • Power Factor: >0.90
  • CRI (Color Rendering Index): > 85
  • Lifespan: 50,000 hours
  • Warranty: 5 Years
  • Certificates: CE, RoHS, FCC
  • IP Rating: IP20
  • Dimming: Compatible with 0-10V DC dimmers
  • Dimensions (inches): (L x W x H): Panel: 11.75" x 11.75" x H:0.43" (External LED Driver)
  • Dimensions (MM):  (L x W x H) 300 x 300 x H: 10.9 (External LED Driver)
  • Product Weight: 2.50 LB
  • Model Number: PNL1X1-24W

Introducing the all new 1x1 Mini PaneLite™ LED Light series. Ultra-thin Side-lit LED Panel Light combines smooth, diffuse light output with an extremely low profile – making it easy on the eyes and easy to install in any ceiling applications.

The unique light output of the Mini PaneLite comes from the LEDs embedded along the interior sides of each 1x1 Mini PaneLite™ LED panel, delivers up to 2,760 lumens using only 24 watts of energy consumption, that compares to a traditional 50 watt Fluorescent Light source.

This light is diffused through a lens to ensure soft, even illumination which eliminates glare and uses 50% less energy compared to Fluorescent light source and lasts 120x longer – perfect for Arts and crafts Lighting, Light boxes, offices, showrooms, class rooms, exhibition halls, Hospitality and other workspace requiring high quality ambient lighting.

At less than half an inch tall, the low profile Mini PaneLite™ Ultra-thin Side-lit LED Panel Light offers industry-leading versatility and ease of installation. Wherever it fits, it sits; simply wire the included driver to line voltage in your wall or ceiling.
This 1'x1' Mini PaneLite™ Ultra-thin Side-lit LED Panel Light is rated to last over 50,000 hours.

  • Multiple Bracket options: Lay-in Ceiling Grid (No brackets Required), Recessed mounting clips and suspended mounting cable systems.
  • Available LED color temperatures: 3000K, 4000K, 5000K, 6500K.

**Volume discounts and distributor pricing available. Please contact us at: 1800-533-4898 for more details.
